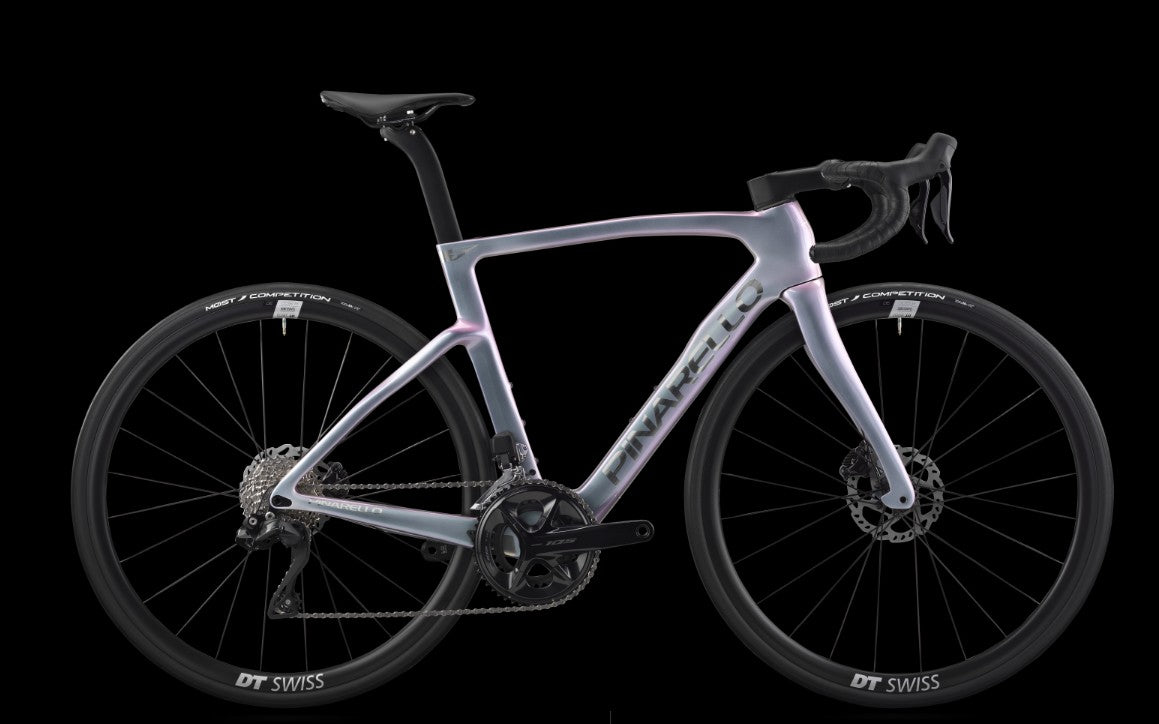

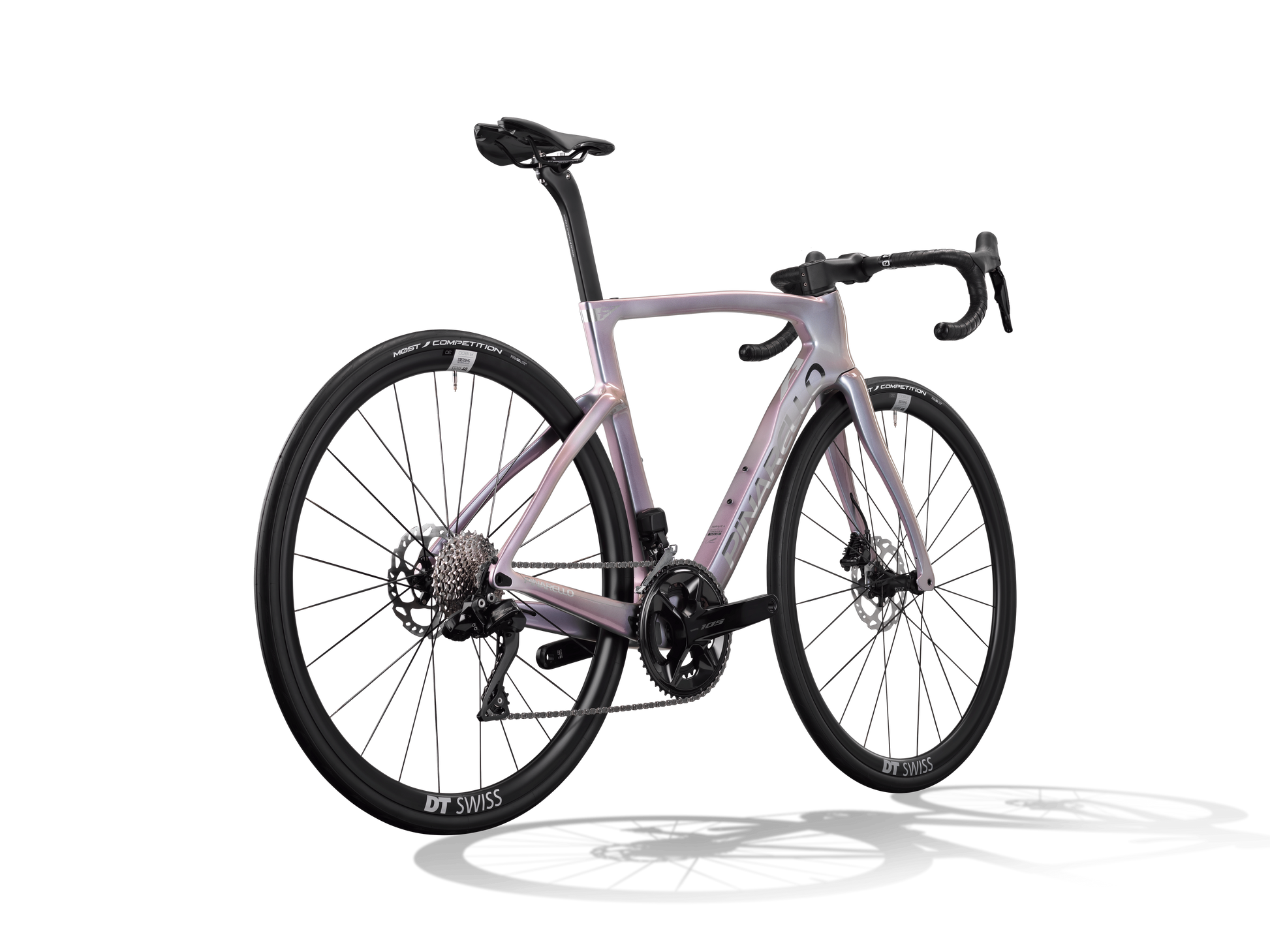

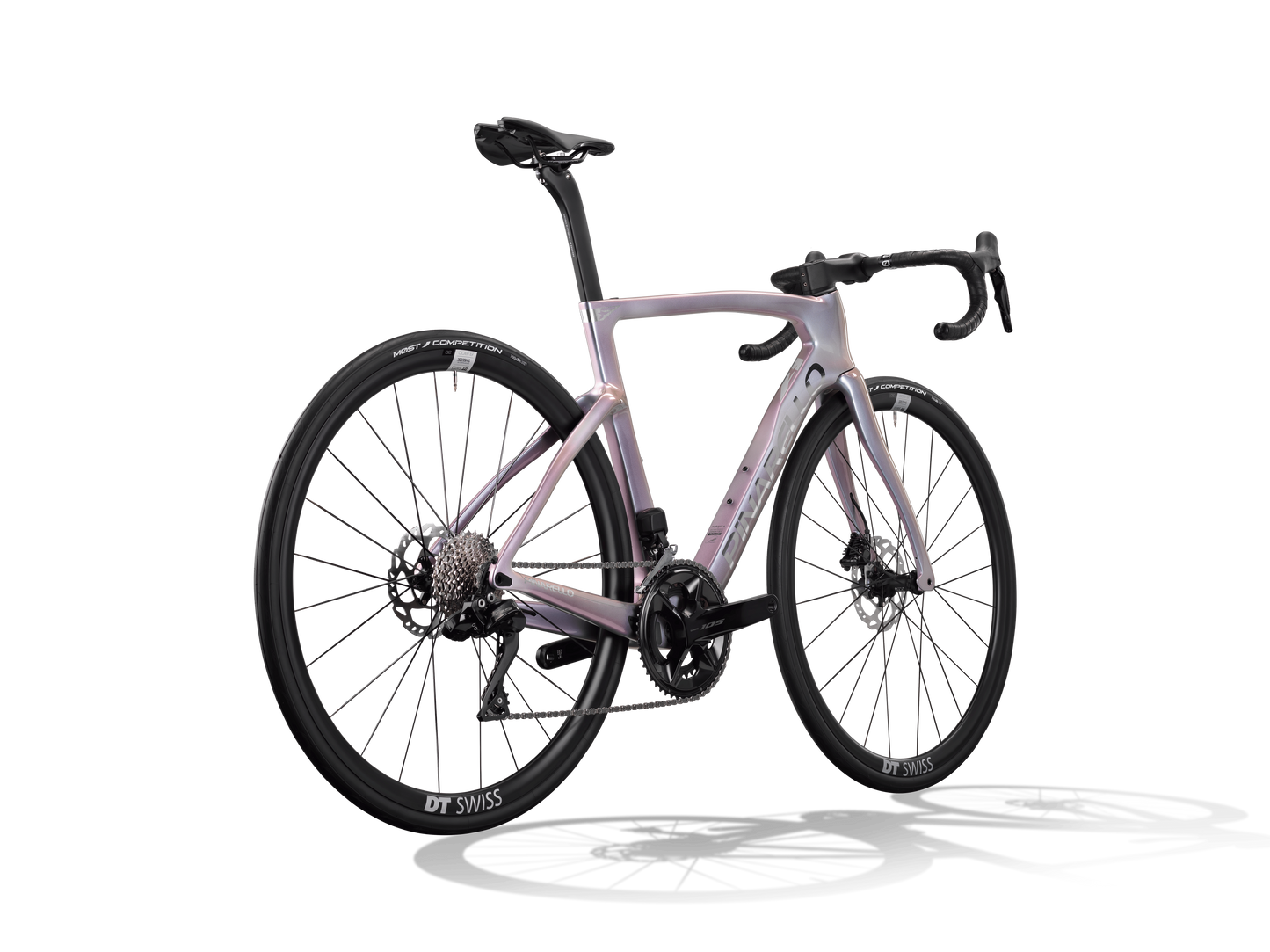

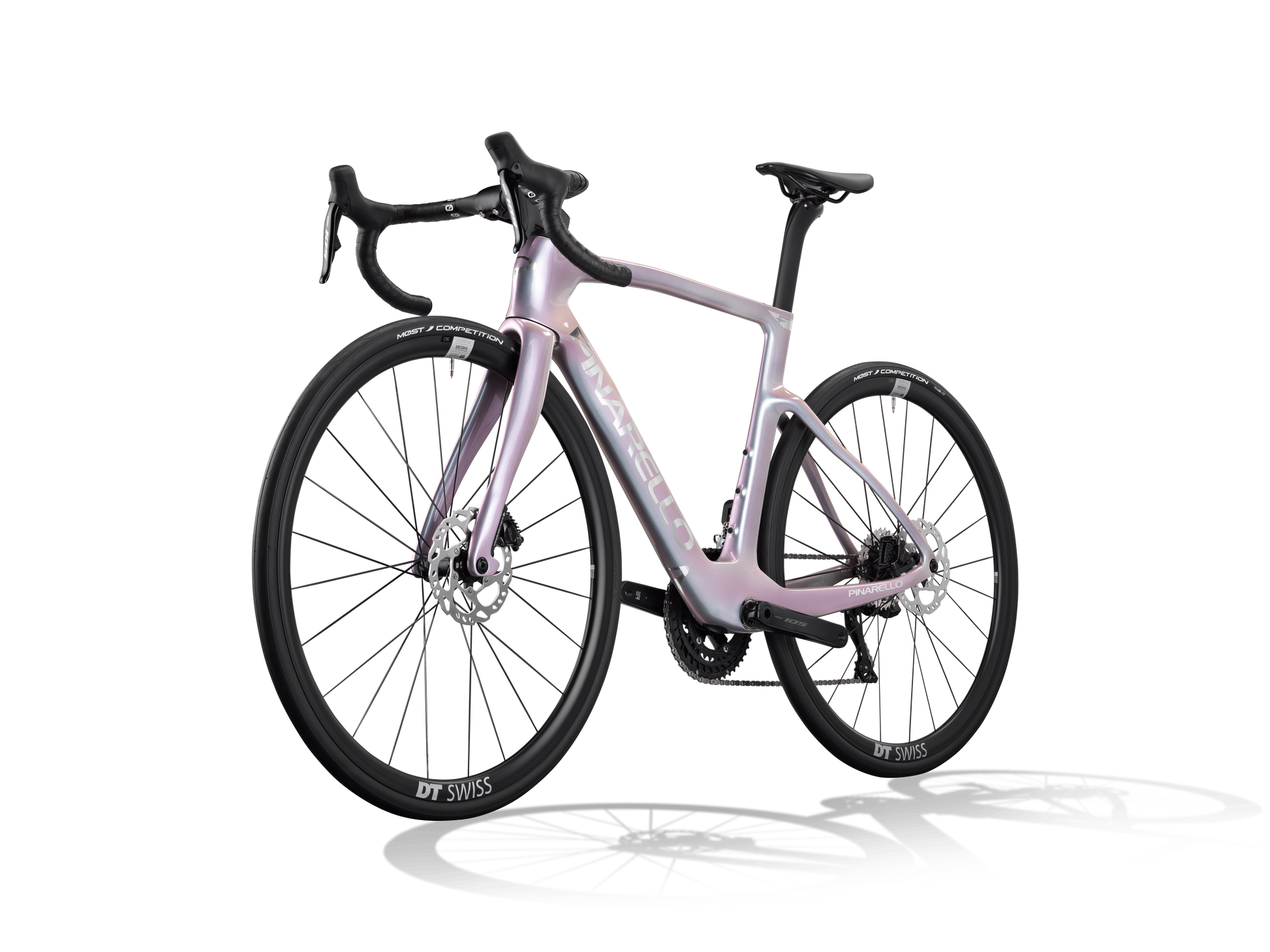

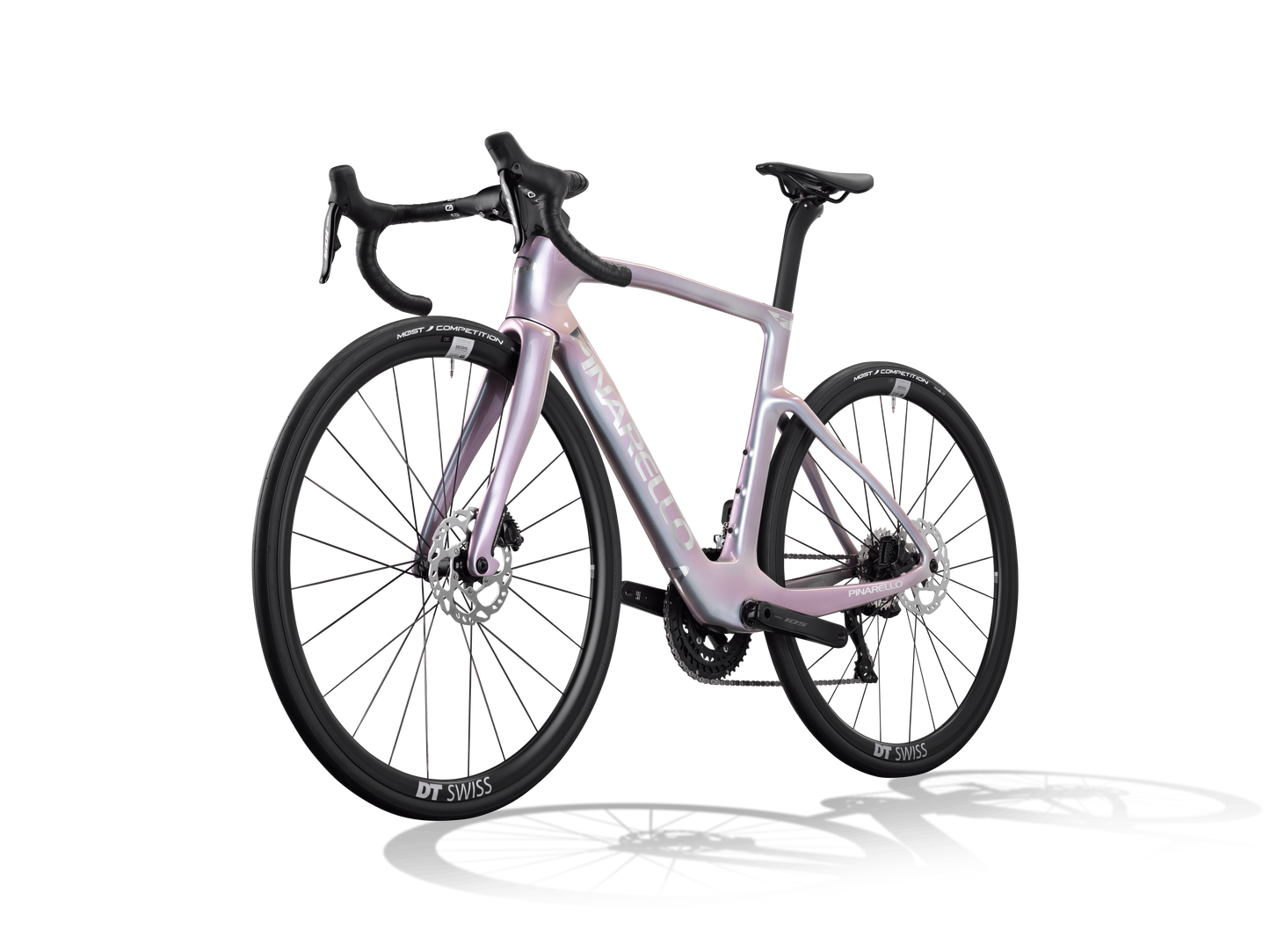

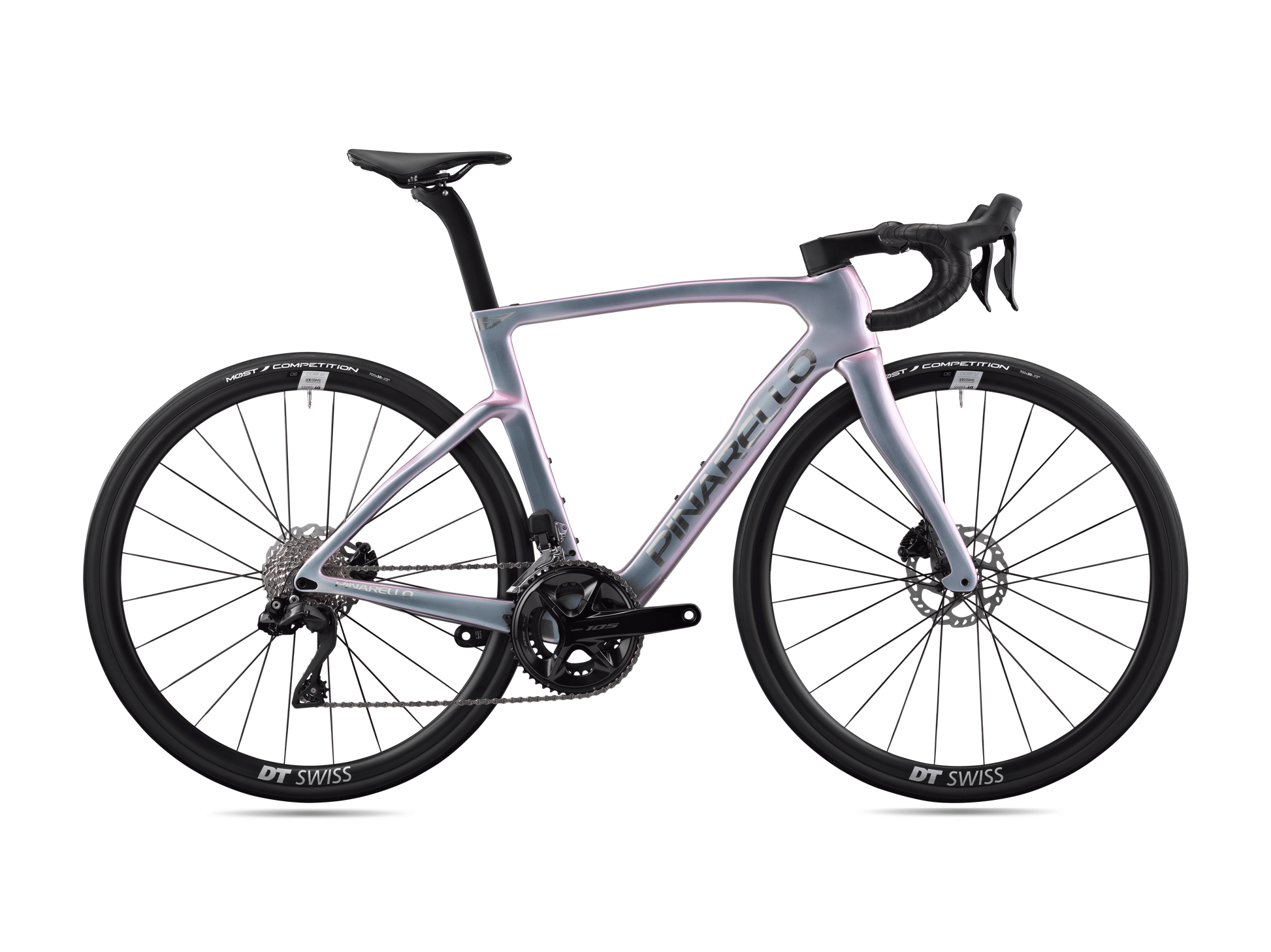

Pinarello My26 Bike F3 CH230 Interstellar Grey 105Di22x12DB A1800DB
Pinarello My26 Bike F3 CH230 Interstellar Grey 105Di22x12DB A1800DB
Couldn't load pickup availability
BORN TO RACE, NO DISCUSSION
Our history is one of extraordinary victories, iconic bicycles, passion, and expertise. The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what we mean by ALL-ROUND PERFORMANCE.
TYRE CLEARANCEUP TO 32MM
32mm tires to unlock the frames’ true potential in terms of both comfort and speed.

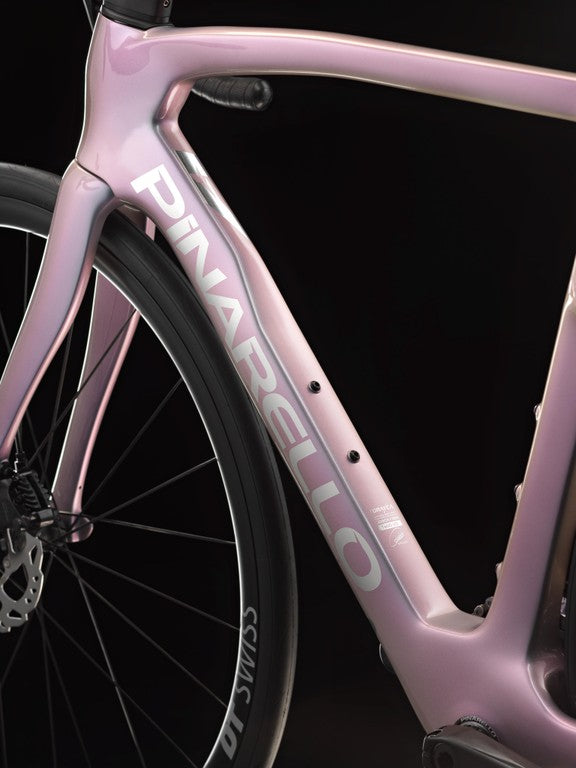

DOWNTUBE
New DOWNTUBE shape, reduced thickness for improve aero performance

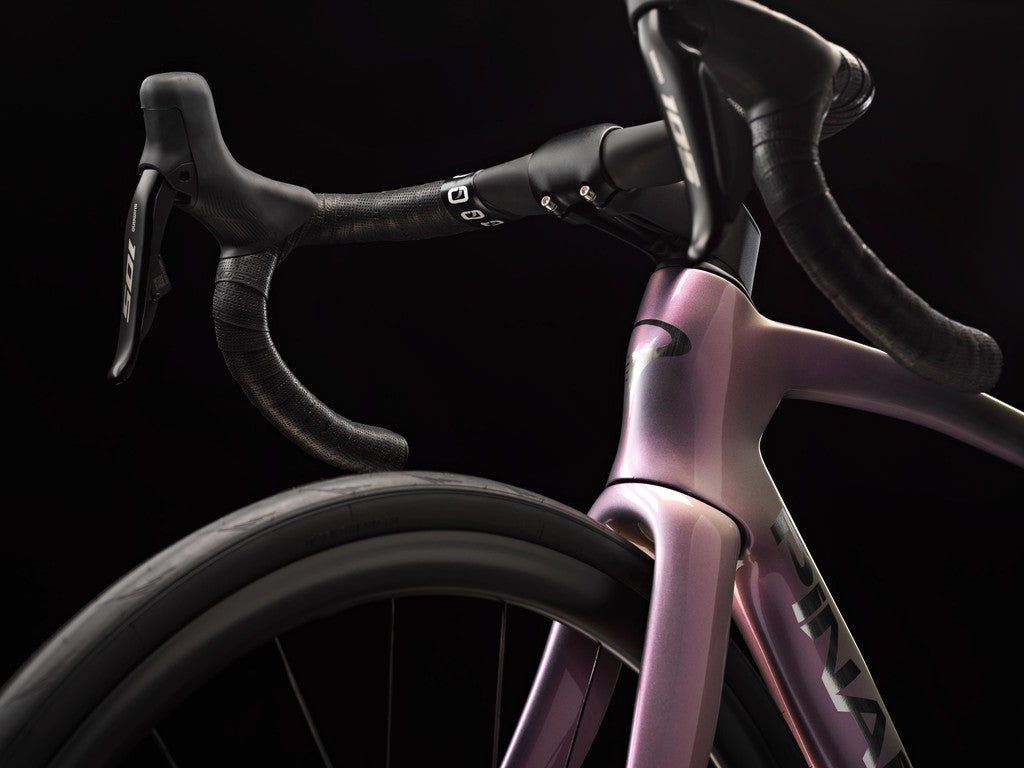

E-TICRHEADSET
To reduce the width of the headtube, we designed an innovative elliptical steering tube and completely new headset using bearings of a different diameter, wider on the bottom and narrower at the top. We also moved the internal cable routing from the sides to the front of the steering tube.

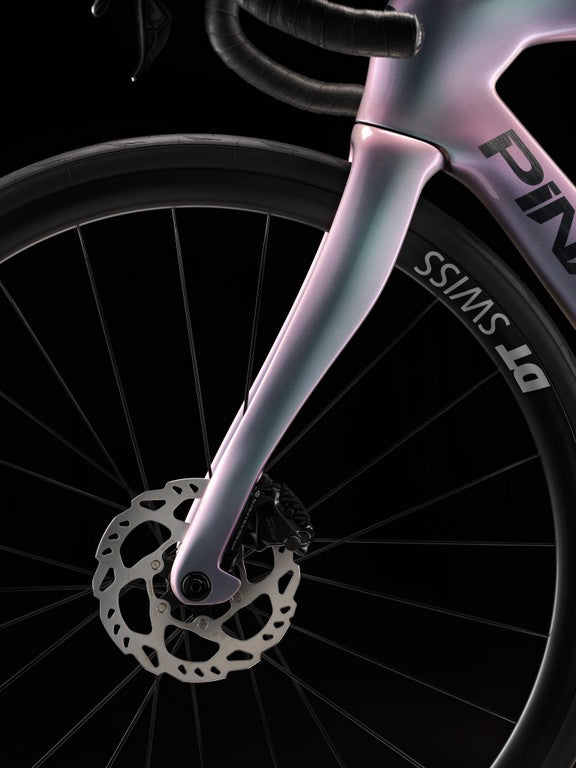

ONDAFORK
The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on descents.

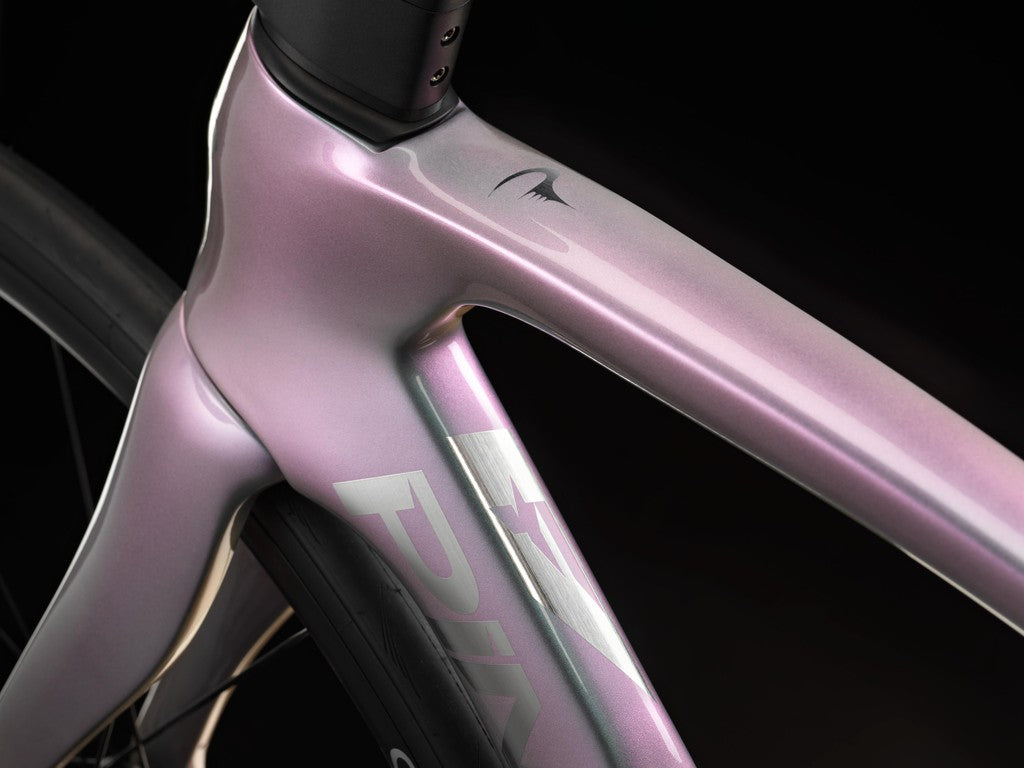

HEADTUBE
New Aero headtube, with increased surface and softer lines to improve aerodynamics and stiffness.
AEROKEEL
New Aero KEEL BB, reduced volume compared with Dogma F, improved stiffness, cleaner look.

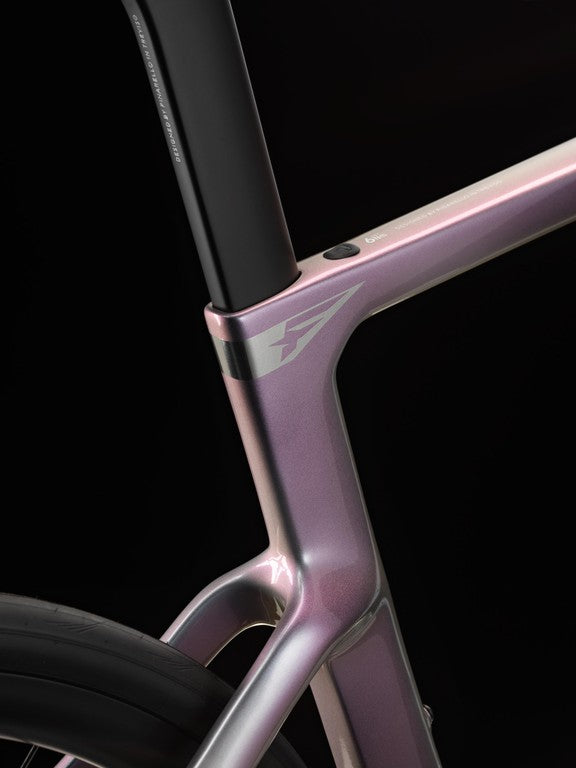

INTEGRATEDSEATCLAMP
Frontal integrated seat clamp, for a cleaner look and protection from sweat and dust.
Geometries
| CE | CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 430 | 500 | 74.4 | 69.5 | 406 | 97 | 67 | 43 | 373 | 351.3 | 502.5 |
| 450 | 465 | 515 | 74.4 | 70.5 | 406 | 104 | 72 | 43 | 373 | 365.2 | 517.7 |
| 465 | 500 | 525 | 74 | 71.4 | 408 | 109 | 72 | 43 | 373 | 372.1 | 525.5 |
| 485 | 515 | 535 | 73.7 | 72 | 408 | 114 | 72 | 43 | 373 | 378.1 | 532.3 |
| 500 | 530 | 545 | 73.7 | 72.5 | 408 | 123 | 72 | 43 | 373 | 385.6 | 542.6 |
| 515 | 545 | 555 | 73.4 | 72.8 | 410 | 138 | 72 | 43 | 373 | 388.3 | 557.9 |
| 525 | 560 | 565 | 73 | 73.2 | 410 | 149.5 | 72 | 43 | 373 | 390.8 | 570.3 |
| 560 | 575 | 578 | 73 | 73.7 | 410 | 178 | 72 | 43 | 373 | 395.4 | 599.3 |
| 580 | 595 | 600 | 72.4 | 73.4 | 410 | 220 | 67 | 43 | 373 | 400.3 | 633.5 |
